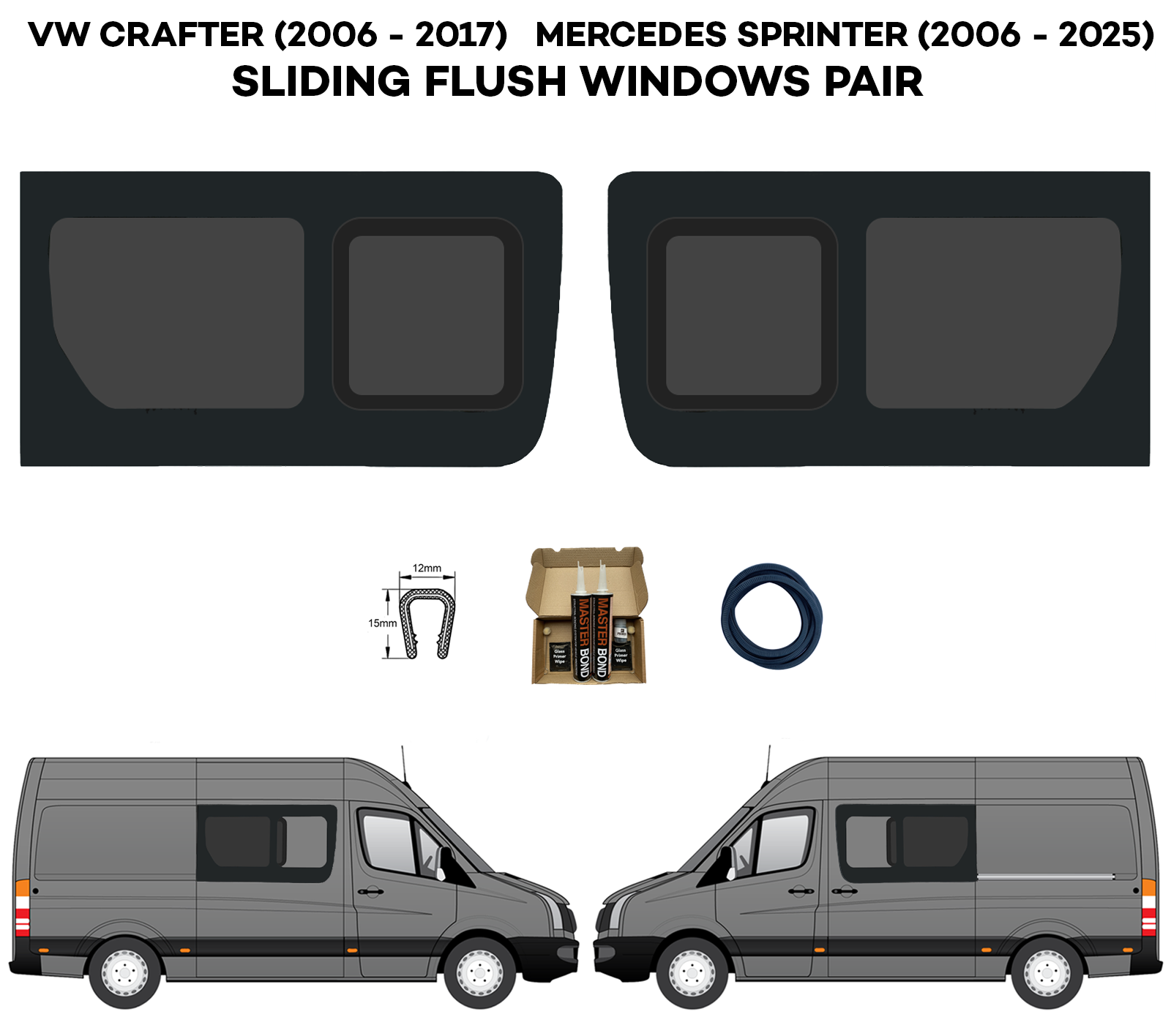

VW Crafter FLUSH Sliding Windows – PAIR

These VW Crafter Sliding windows are designed to look OEM with the sliding portion of the windows sitting flush with the outer window. Just like factory fitted sliding opening windows.

To Fit:

VW Crafter 2006 – 2017

VW Crafter MWB

VW Crafter LWB

VW Crafter XLWB

Includes:

1 x VW Crafter Sliding Window  – DRIVER SIDE

1 x VW Crafter Sliding Window  – PASSENGER SIDE

Window Specs:

• Manufacturer: Van Tek Glass
• Part Number: SPRSLDFL002
• Flush OEM Style Window
• All our glass meets international safety standards these include: Worldwide Dot Standards,
• E-marked and AS Rated
• Toughened safety glass
• Sliding opening window sits flush to the outer window
• Opening window can be locked in multiple open positions
• Bonded window – No external seal or gasket
• Privacy stained glass (not a tinting film)
• Tinted to 80% allowing 20% of light to pass through
• Av Rating 15%
• External Drainage system
• Black ceramic (silk print) round the internal circumference of the glass so you can’t see the cut metal work
• Tried and tested design
• Measurements:
• Passenger Side Overall Size 1402mm x 769mm (55.19″ x 30.6)
• Slider Opening Size: 543mm x 537mm (21.37″ x 21.1″)



• Optional Bonding kit:
  • • 2 x Primer Wipes (to clean the window and body panel before applying primer)
    • 1 x Jar of primer (to be applied to the window and body panel before applying adhesive)
    • 2 x ‘Cotton buds’ to apply the primer
    • 2 x Tubes of 60 minute driveway OEM approved structural ADHESIVE (applied through standard silicone gun)
    • 2 x Pre cut V nozzles for the adhesive
    • More fitting details here: https://campertecglass.co.uk/product/2-x-window-bonding-kit/

The bonding kit can be purchased by adding it to your cart with the window you require via the drop down fit kit and trim options

Optional U Trim:

U Trim is used to cover the cut edge. It cover the inner lip and cut edge in one.

• Used to cover the cut edge for a professional finish
• Sold Per window
• 12mm wide
• 15mm tall
• 4 x Meter Long

The trim can be purchased by adding it to your cart with the window you require via the drop down fit kit and trim options
